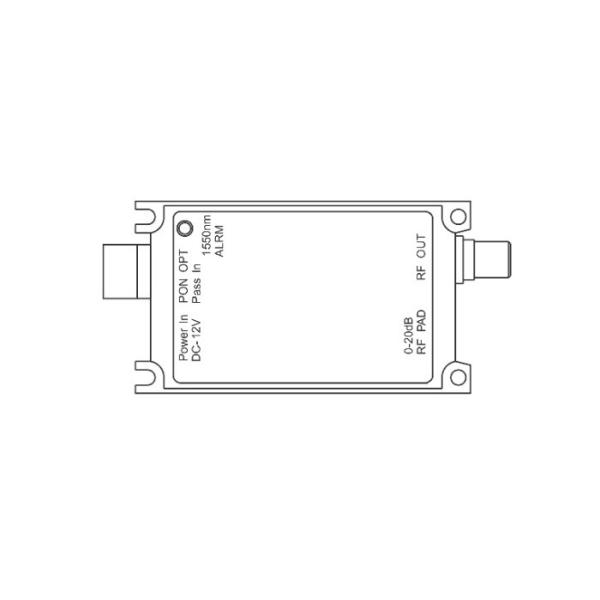

Indoor 12V Wdm Catv Optical Receiver Fiber FTTH With Inside Wdm Module

Product Categories
Hangzhou Junpu Optoelectronic Equipment Co., Ltd.
Contact Now

Indoor 12V Wdm Catv Optical Receiver Fiber FTTH With Inside Wdm Module

  • 1
  • 2
  • 3

Brand Name : JUNPU

Model Number : JPX86RW

Certification : ROHS, CE, CCC

Place of Origin : China

MOQ : 1 Piece

Price : Negotiation

Payment Terms : T/T, Western Union, Credit Card Via Alibaba

Supply Ability : 10000Pieces Per Month

Delivery Time : 1 ~ 10 Working days

Packaging Details : Standard Strong Carton Box

Product Name : Catv Optical Receiver

Application : HFC&CATV&FTTX

Receiving Power : -1 ~ -20dbm(digital)

Output Ports : 1 output

Fiber Connector : SC, SC APC, LC, FC

Output Level : 82dbuv

With Wdm : YES

Working Wavelength : 1550/1490/1310nm

Power Supply : DC12V

OEM : YES

Bandwidth : 45-862MHz/1000MHz

Contact Now

Indoor 12V Wdm Catv Optical Receiver Fiber FTTH With Inside Wdm Module

Description:

  • JPX86RW adopts low optical power detector, GaAs and which meet the demands of CATV receiving. A variety of functional products is slightly different in the application. JPX86RW has output level adjustable function and AGC function, output level keeps unchanged which make the debugging very convenient. JPX86RW FTTH optical terminal can add isolator for only receiving the 1550nm optical.

FTTH Diagrm:

Indoor 12V Wdm Catv Optical Receiver Fiber FTTH With Inside Wdm Module

Details:

Parameter Specification
Product Name Indoor 12V Wdm Catv Optical Receiver Fiber FTTH With Inside Wdm Module
Working Wavelength output 1550nm--RF; output 1490/1310--ONU
Connector Type

Catv port: SC APC

Pon Port: SC APC or SC UPC
Inside Module WDM module

Indoor 12V Wdm Catv Optical Receiver Fiber FTTH With Inside Wdm Module

Indoor 12V Wdm Catv Optical Receiver Fiber FTTH With Inside Wdm ModuleIndoor 12V Wdm Catv Optical Receiver Fiber FTTH With Inside Wdm ModuleIndoor 12V Wdm Catv Optical Receiver Fiber FTTH With Inside Wdm ModuleIndoor 12V Wdm Catv Optical Receiver Fiber FTTH With Inside Wdm Module

Indoor 12V Wdm Catv Optical Receiver Fiber FTTH With Inside Wdm Module

Technical Specification:

Item Unit
Optical Parameters
Optical Wavelength nm 1290～1600
Optical Input Range dBm -17～+3
AGC Control Range dB -7～+2
Optical Return Loss dB ≥45
Optical Connector SC/APC or FC/APC
RF Parameters
Bandwidth MHz 47~1000
Flatness dB ±1.5
RF Output Level dBuV ≥82(AGC Control:-7～+2dBm)
Optical Return Loss dB ≥14dB (47~1000MHz)
Optical Impendence Ω 75
MGC Control Range dB 0~20±2
RF connector F-5
Link Parameters
CTB dB ≥65@-8dBm
CSO dB ≥65@-8dBm
CNR dB ≥48@-8dBm
Others
Power Supply Input Voltage V 110~240 AC@50/60Hz
Output Voltage V DC12V
Power Consumption W ＜3
Working Temp ℃ -20～+50
Working Humidity % 0-90%
Size mm 112(L)*50(W)*22(H)

Test:

Indoor 12V Wdm Catv Optical Receiver Fiber FTTH With Inside Wdm Module

Indoor 12V Wdm Catv Optical Receiver Fiber FTTH With Inside Wdm Module

We sincerely invite you to send us inquiry for further details.

Junpu Cares About Every Single Details Of The Product For You !
